Product Introduction

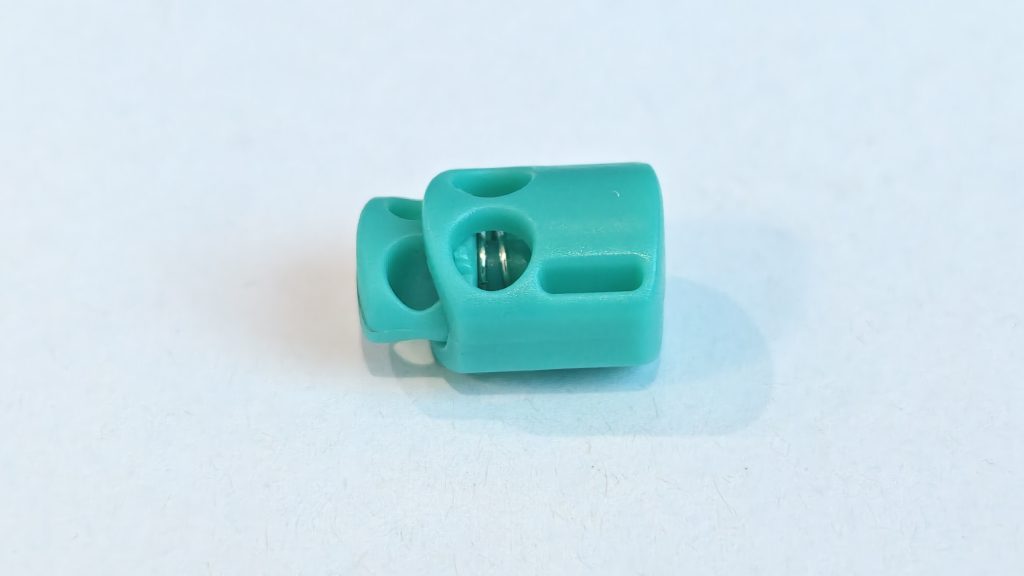

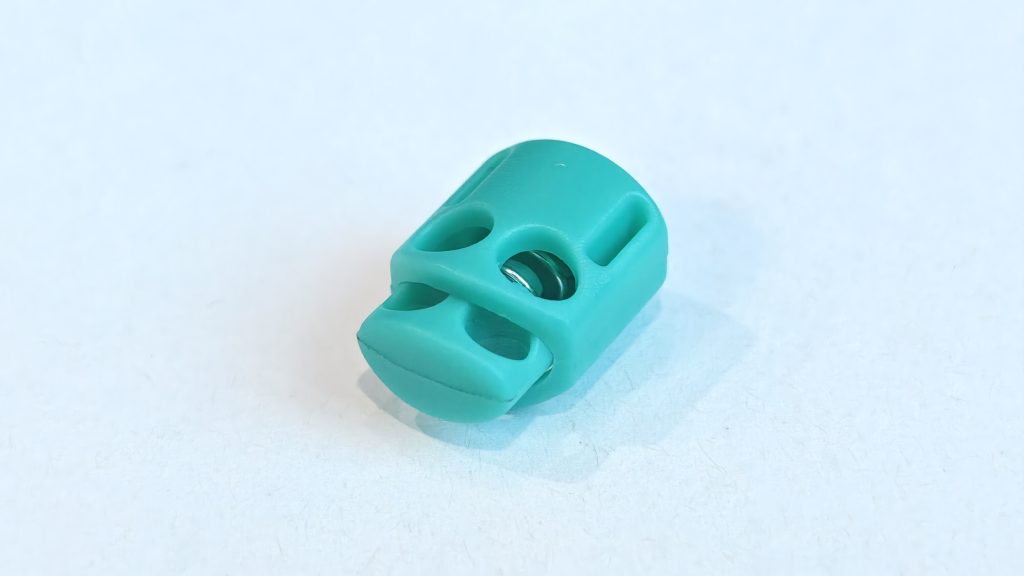

Cord lock: The lock body has a cylindrical profile, with two cord passage holes arranged on the front, a long slot on each side, an arc-shaped press head at the upper end, and a visible spring inside the opening. Press the movable press head or press handle to align the mating cord passage portions and then adjust the cord length; after release, it holds its position via reset engagement. The cord routing path and adjustment effect must be confirmed with the actual cord.
DAWEI provides plastic accessory injection molding and mold development services, supporting evaluation from drawings and samples, prototyping, and mass supply. For this model, a matching solution can be designed around side-by-side double holes, long slots on both sides, and an arc-shaped press head; dimensions, colors, and markings can be customized, and actual installation and use performance are subject to confirmed samples.
Cord lock: The lock body has a cylindrical profile, with two cord passage holes arranged on the front, a long slot on each side, an arc-shaped press head at the upper end, and a visible spring inside the opening. It is used for organizing and adjusting drawstring length, supports customization of dimensions, colors, markings, and structure, and the installation and mating solution is to be confirmed by samples.
Get a QuoteProduct Specifications and Customization
- Material Selection
- PA / POM / PP / TPU; material selection can be evaluated based on structural and application requirements.
- Molding Process
- The lock body and movable part are injection molded separately, and the spring is assembled according to the mating structure. The mold design is evaluated for the side-by-side dual holes, long slots on both sides, and curved press head; during sampling, check the movement stroke, hole opening alignment, reset, and adjustment performance with the actual cord.
- Customization Options
- Side-by-side dual holes, long slots on both sides, and the curved press head are customizable, as are the overall dimensions, hole opening clearance, surface finish, colors, and logo artwork. Cord diameter, cord shape, movement stroke, and the installation fit of the connecting slot can be evaluated on a project basis; the specific mating structure is to be confirmed with drawings and samples.
- Applications
- Matching outerwear hood cords, hem drawstrings, and cord routes for bags and storage pouches can be evaluated, for drawstring length management and adjustment. For dual-hole or dual-end structures, the routing through each hole must be confirmed; dual-cord and re-threading solutions are designed per project.
Uses and Applications
Jacket hood cord matching
The cylindrical dual holes and long slots on both sides can be evaluated together with the installation position of the hood cord; the press head direction and hole openings must match the actual cord.
Hem and bag-mouth drawcords
Used for organizing hem or bag-mouth drawcords; the hole diameter, cord cross-section and re-threading method are confirmed with the matching sample.
Cord routing for luggage and storage bags
Installation can be evaluated according to the bag's cord routing and closure method. The adjustment feel and retention effect must be verified in combination with actual usage conditions.
Get Product Information and a Quote
Please share product images, drawings, dimensions, and quantity requirements so we can evaluate your project needs.
