Product Introduction

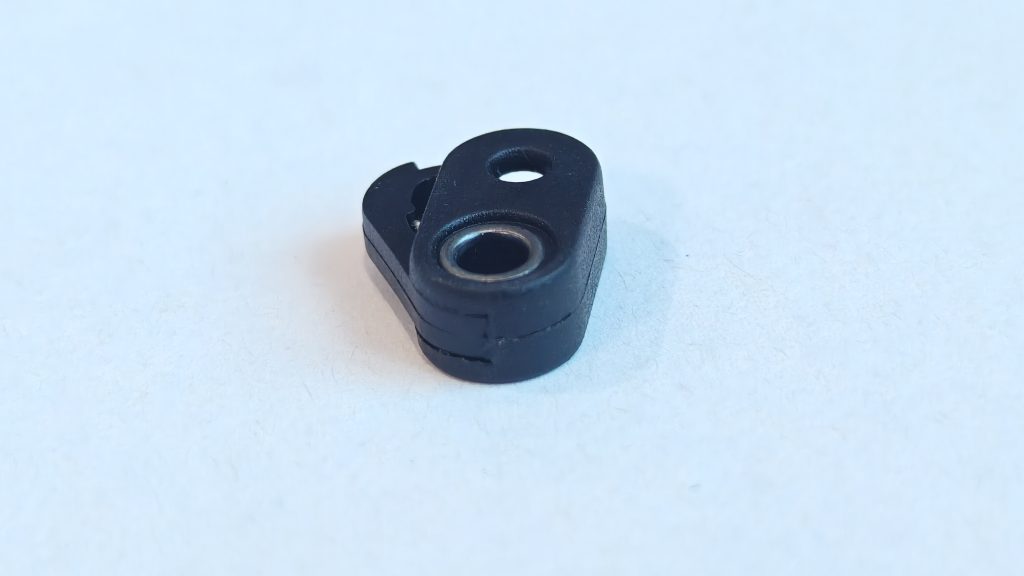

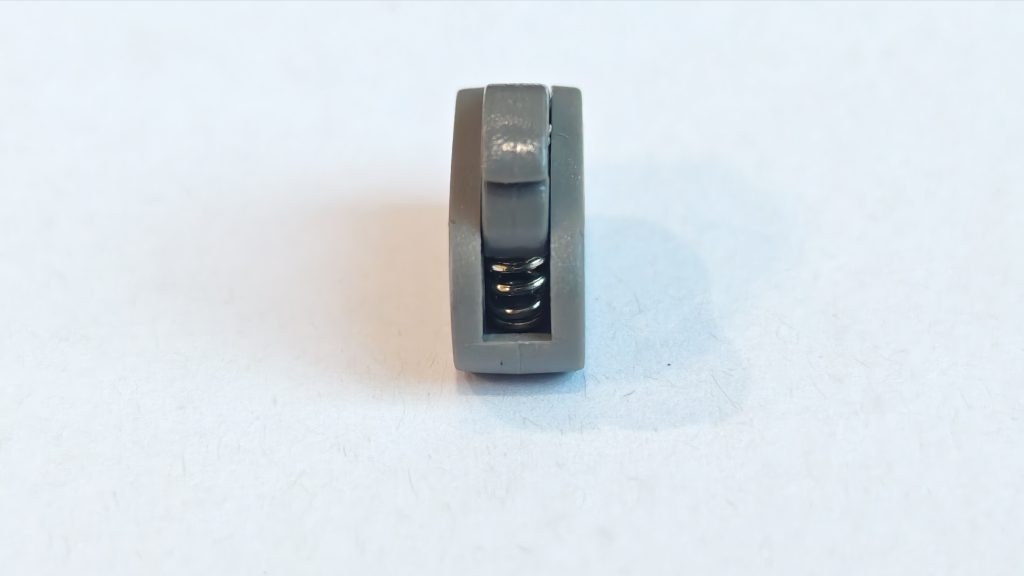

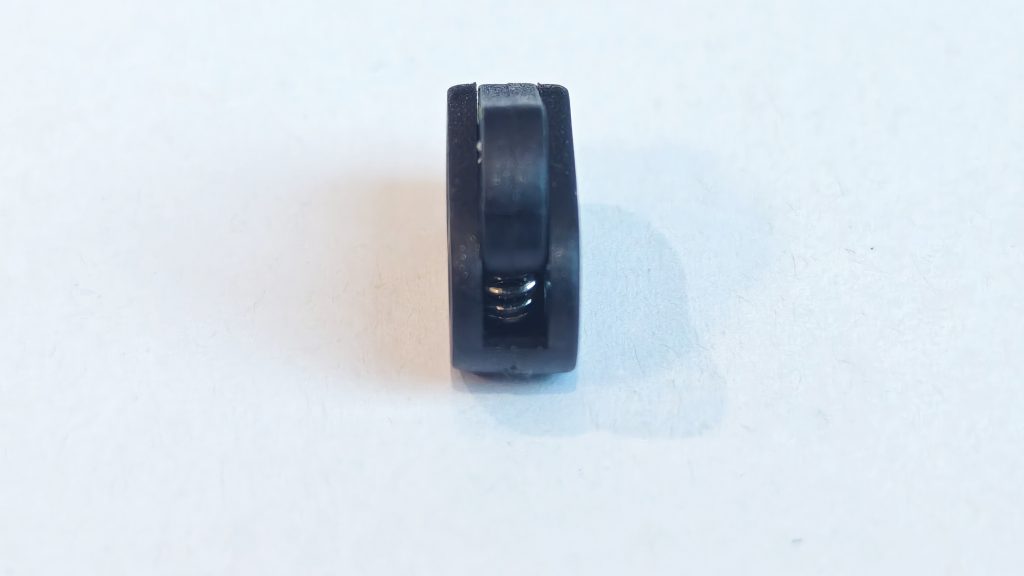

Cord lock: the lock body uses a flat rounded profile, with round holes on the face, one of which has a grommet at the opening, and a movable press handle and spring visible on the side. Press the movable press button or press handle to align the mating cord threading area and then adjust the cord length; after release, the position is held by the return fit; the cord threading path and adjustment effect must be confirmed with the actual cord body.
DAWEI provides plastic accessory injection molding and mold development services, supporting evaluation from drawings and samples, prototyping, and bulk supply. For this model, matching solutions can be designed around offset hole positions, hole-opening fittings, and press-handle travel; size, color, and markings are customizable, and actual installation and use performance are subject to the confirmed sample.

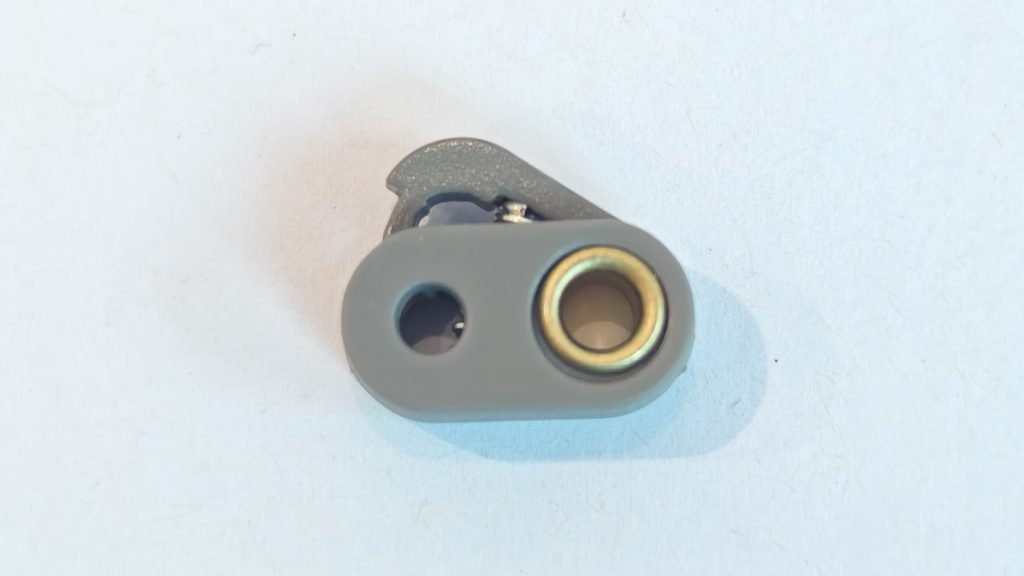

Cord lock: the body has a flat, rounded profile with a round hole on the face; one of the hole openings is fitted with an eyelet, and the movable press handle and spring are visible from the side. Used for organizing and adjusting drawstring length; size, color, marking, and structure can be customized, and installation and fitting solutions are confirmed against samples.
Get a QuoteProduct Specifications and Customization
- Material Selection
- PA / POM / PP / TPU; material selection can be evaluated based on the mating structure, assembly method and operating environment.
- Molding Process
- The buckle body and the movable part are injection molded separately, while the spring and hole-opening fittings are assembled according to the mating structure. The mold solution is evaluated around offset hole positions, hole-opening fittings, and press-handle travel; during sampling, the movable travel, hole-opening alignment, return action, and actual cord adjustment performance are checked.
- Customization Options
- Offset hole positions, hole-opening fittings, and press-handle travel can be customized, along with overall dimensions, hole-opening clearance, surface finish, color, and LOGO artwork. Cord diameter, cord shape, movable travel, and the installation fit of the connecting slot can be evaluated per project; the specific matching structure is confirmed by drawings and samples.
- Applications
- Can be evaluated for matching jacket hood cords, hem drawcords, and cord routing for bags and storage pouches, used for organizing and adjusting drawcord length. The cord opening, connecting parts and operating space must match the point of use.
Uses and Applications
Jacket hood cord matching
The flat press handle and the hole-opening eyelet can be evaluated together with the installation position of the hood cord; the direction of the press head and the hole opening must suit the actual cord.
Hem and bag-mouth drawcords
Used for organizing hem or bag-mouth drawcords; the hole diameter, cord cross-section and re-threading method are confirmed with the matching sample.
Cord routing for luggage and storage bags
Installation can be evaluated according to the bag's cord routing and closure method. The adjustment feel and retention effect must be verified in combination with actual usage conditions.
Get Product Information and a Quote
Please share product images, drawings, dimensions, and quantity requirements so we can evaluate your project needs.
