Product Introduction

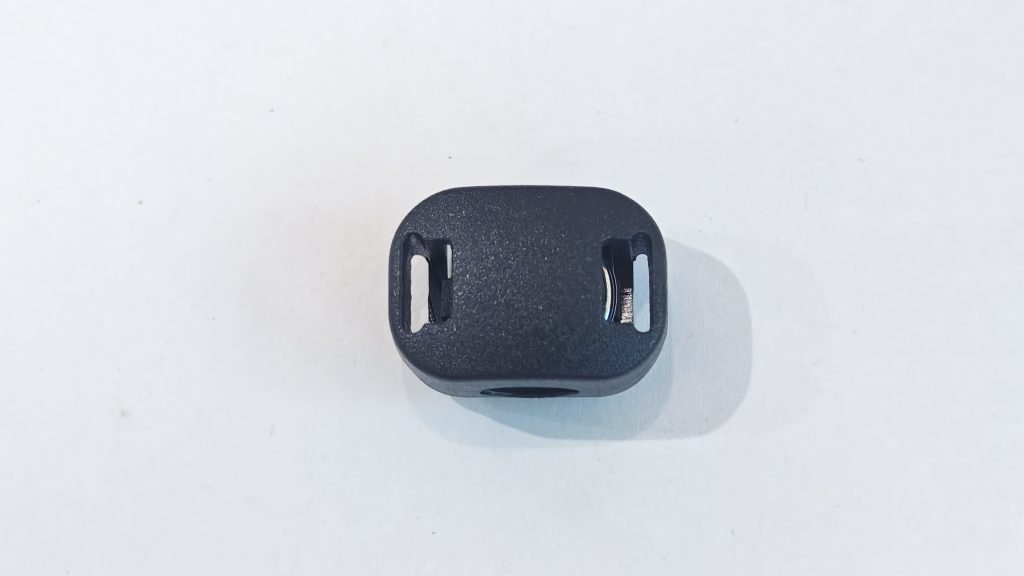

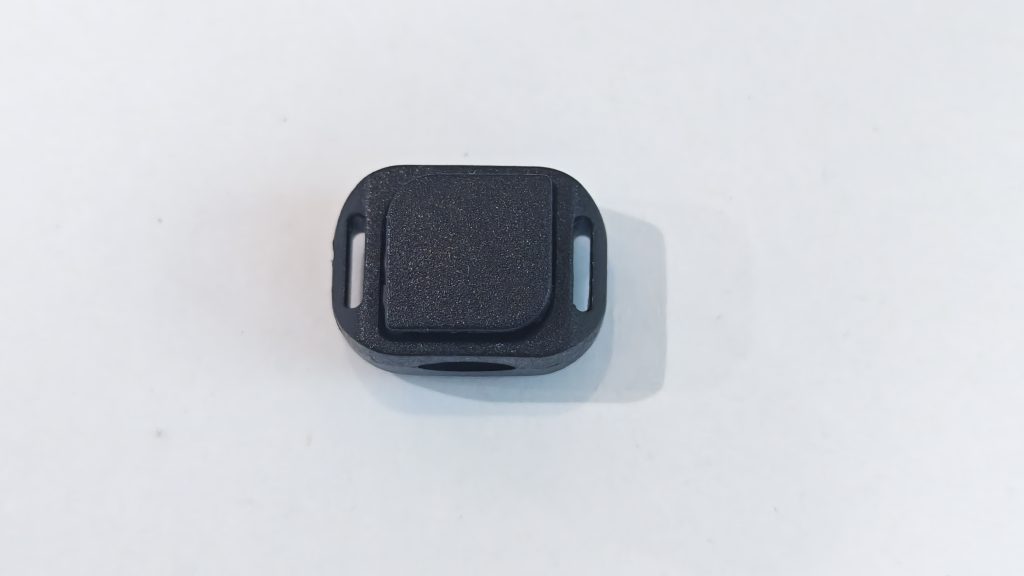

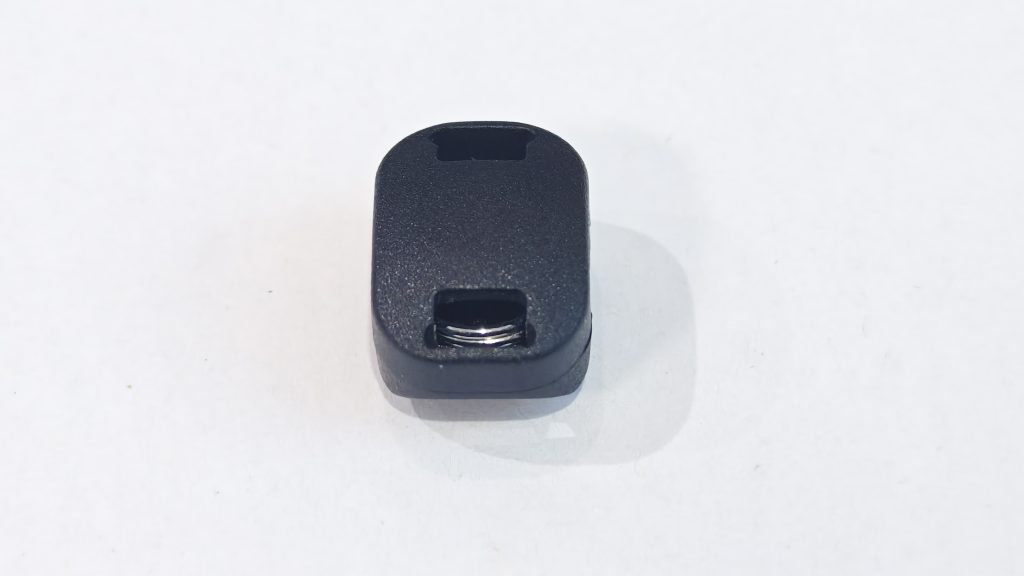

Cord lock: the lock body is a flat rounded square frame, with a long slot on the side, a wide movable press tab on the back, and a spring visible inside the cord-threading opening. Press the movable press head or press handle so that the matching cord-threading parts align, then adjust the cord length; after release, the position is held by the return fit; the cord-threading path and adjustment effect must be confirmed with the actual cord.
DAWEI provides injection molding and mold development services for plastic accessories, supporting evaluation from drawings and samples, prototyping and mass supply. For this model, matching solutions can be designed around the rounded square frame, double-side slots and back press tab; dimensions, colors and logos can be customized, and the actual installation and use effect is subject to the confirmed sample.
Cord lock; the lock body is a flat rounded-corner square frame with long slots on the sides, a wide-surface movable press tab on the back, and a visible spring inside the cord opening. It is used for organizing and adjusting drawstring length and supports customization of size, color, logo and structure; installation and fitting solutions are confirmed by samples.
Get a QuoteProduct Specifications and Customization
- Material Selection
- PA / POM / PP / TPU; material selection can be evaluated based on structural and application requirements.
- Molding Process
- The lock body and the movable part are injection molded separately, and the spring is assembled according to the mating structure. The mold plan is evaluated around the rounded frame corners, double-side slots and back press tab; during sampling, check the travel of the movable part, hole alignment, return and the adjustment performance with the actual cord.
- Customization Options
- Customizable rounded frame corners, double-side slots and back press tab, as well as overall dimensions, hole clearance, surface finish, color and LOGO artwork. Cord diameter, cord shape, travel of the movable part and installation fit of the connecting slot can be evaluated per project; the specific matching structure is confirmed by drawings and samples.
- Applications
- Can be evaluated for matching jacket hood cords, hem drawcords, and cord routing for bags and storage pouches, used for organizing and adjusting drawcord length. The cord opening, connecting parts and operating space must match the point of use.
Uses and Applications
Jacket hood cord matching
The flat square-frame double-side-slot press structure can be evaluated in conjunction with the hood cord installation position; the press tab direction and hole opening must match the actual cord.
Hem and bag-mouth drawcords
Used for organizing hem or bag-mouth drawcords; the hole diameter, cord cross-section and re-threading method are confirmed with the matching sample.
Cord routing for luggage and storage bags
The connecting loop or the long slot can be evaluated according to the bag fixing solution. The adjustment feel and holding performance need to be verified under actual use conditions.
Get Product Information and a Quote
Please share product images, drawings, dimensions, and quantity requirements so we can evaluate your project needs.
