Product Introduction

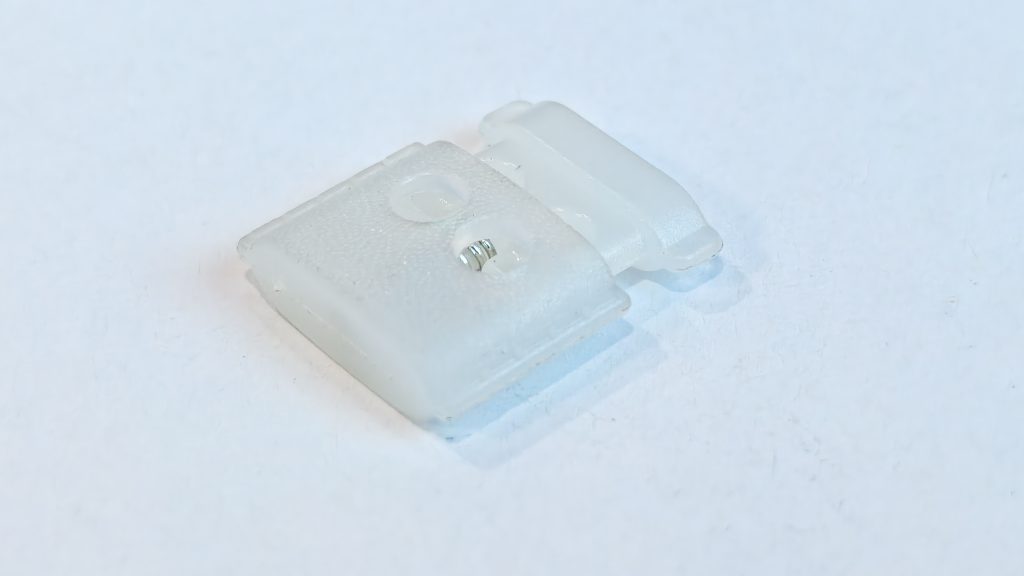

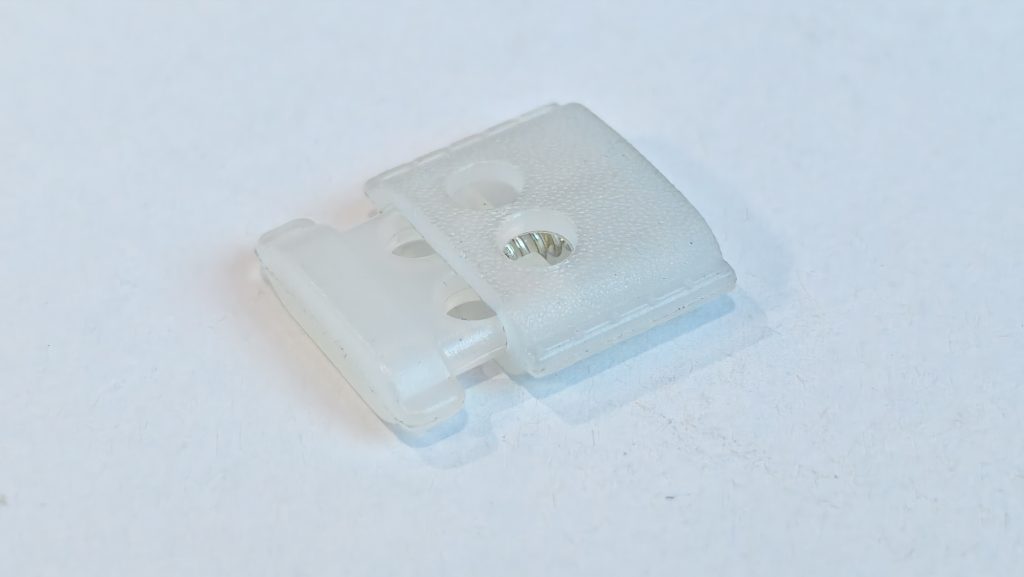

Cord lock: the body has a rounded square frame shape, the front features two holes and a fine-textured surface, the upper end has a horizontal press head, and a spring is visible inside the hole. Press the movable press head or press handle to align the matching cord-threading position and then adjust the cord length; after release, the position is held by the return fit. The cord-threading path and adjustment effect must be confirmed with the actual cord.
DAWEI provides plastic accessory injection molding and mold development services, supporting evaluation from drawings and samples, sampling and mass supply. For this model, matching solutions can be designed around the square frame contour, fine-textured surface and dual-hole positions; dimensions, color and logos are customizable, and the actual installation and use results are subject to the confirmed sample.
Cord lock; the body has a rounded square frame shape, the front features two holes and a fine-textured surface, the upper end has a horizontal press head, and a spring is visible inside the hole. Used for organizing and adjusting drawstring length; dimensions, color, logos and structure can be customized, and the installation and fit solution is confirmed according to the sample.
Get a QuoteProduct Specifications and Customization
- Material Selection
- PA / POM / PP / TPU; material selection can be evaluated based on structural and application requirements.
- Molding Process
- The body and the movable part are injection molded separately, and the spring is assembled according to the matching structure. The mold solution is evaluated around the square frame contour, fine-textured surface and dual-hole positions; during sampling, the movable stroke, hole opening alignment, return and the adjustment performance of the actual cord are checked.
- Customization Options
- Customizable square frame outline, fine-textured surface and dual-hole positions, as well as overall dimensions, hole opening clearance, surface finish, color and LOGO artwork. Cord diameter, cord body shape, travel distance and installation fit of the connection slot can be evaluated per project; the specific mating structure is to be confirmed by drawings and samples.
- Applications
- Matching outerwear hood cords, hem drawstrings, and cord routes for bags and storage pouches can be evaluated, for drawstring length management and adjustment. For dual-hole or dual-end structures, the routing through each hole must be confirmed; dual-cord and re-threading solutions are designed per project.
Uses and Applications
Jacket hood cord matching
The square frame dual-hole fine-textured press structure can be evaluated in conjunction with the hood cord installation position; the press head direction and hole openings need to fit the actual cord body.
Hem and bag-mouth drawcords
Used for organizing hem or bag-mouth drawcords; the hole diameter, cord cross-section and re-threading method are confirmed with the matching sample.
Cord routing for luggage and storage bags
Installation can be evaluated according to the bag's cord routing and closure method. The adjustment feel and retention effect must be verified in combination with actual usage conditions.
Get Product Information and a Quote
Please share product images, drawings, dimensions, and quantity requirements so we can evaluate your project needs.
